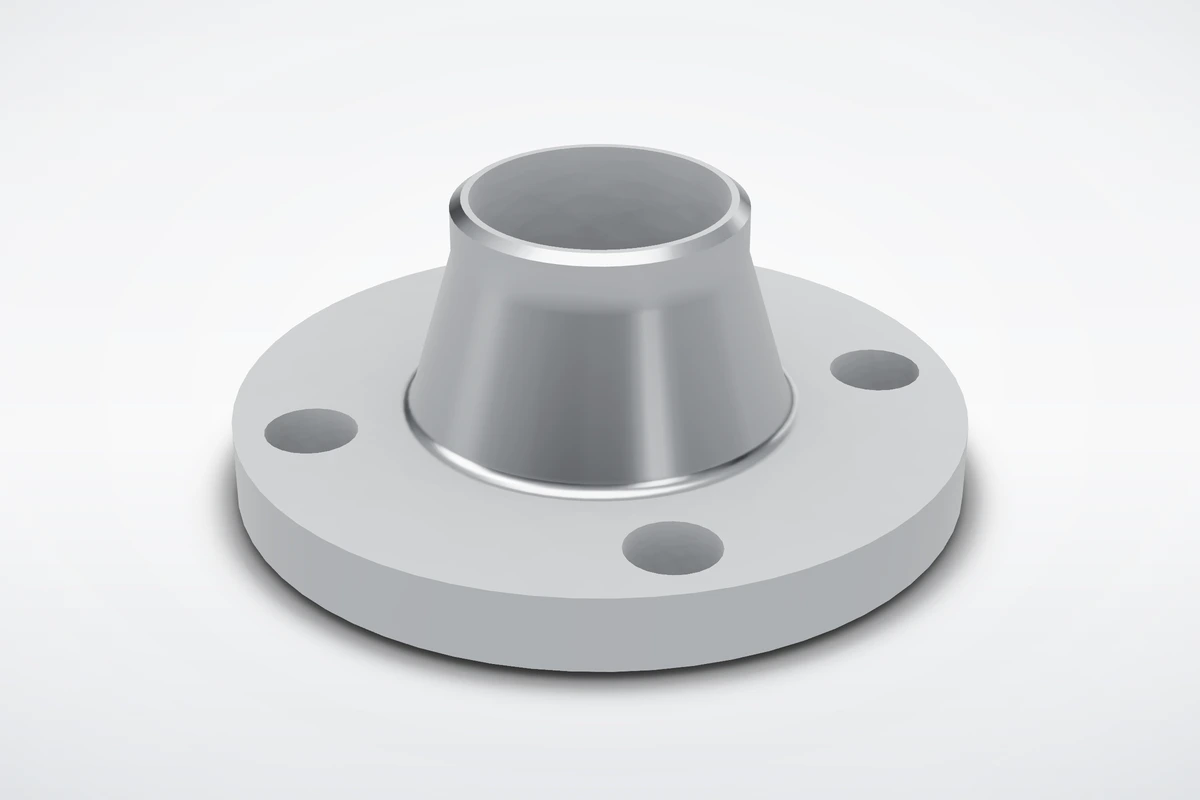

Pipe Flanges
Weld neck, slip-on and blind flanges with matching bolting.
Drag to rotate · scroll to zoomDrag to rotate · pinch to zoom
Flanges supplied alongside the studs and nuts that bolt them — one certified package.
Manufactured to
Standards.
ASME B16.5 / B16.47Pipe flange dimensions
The buyer’s guide
About our pipe flanges
Forged and machined flanges — weld-neck, slip-on, blind and specials — machined or modified in-house to ASME B16.5, in the same certified materials as our bolting. Every piece is machined or modified in our Houston shop with heat traceability end to end.
- Weld-neck, slip-on, socket-weld, blind and custom
- ASME B16.5 dimensions by size and class
- Machined, modified or refaced in-house
- Supplied as bolted sets with studs and nuts
Tips for purchasing
- Give the size, rating and material — or the line spec — and we take it from there.
- Fittings ship with full material certs on request.
- Package fittings with the matching studs, nuts and gaskets — one PO, one source.
Available in
Materials.
A193 B7A193 B7MA540 B21–B24A193 B16A320 L7A320 L7MA320 L43A320 L7A/B/CA320 L70–L73A320 L1A193 B8 Class 1A193 B8 Class 2A193 B8M Class 1A193 B8M Class 2A320 B8 Class 1A320 B8 Class 2A320 B8M Class 1A320 B8M Class 2A320 B8F304 Stainless316 StainlessSAE Gr.5 / Gr.8A574Class 12.9F835F9124140434041424330V300M817M40 (EN24)F880F879F837F594 stainless nuts304L Stainless316L StainlessA193 B8T Class 1A193 B8T Class 2A320 B8T321 StainlessA193 B8C Class 1A193 B8C Class 2A320 B8C347 StainlessA193 B6410 Stainless416 Stainless17-4 PHF468 nonferrous boltsF467 nonferrous nutsInconel 718Inconel X-750Nimonic 80AInconel 725Incoloy 925Incoloy 825Incoloy 800H/HTMonel 400Monel K-500Duplex 2205Super Duplex 2507Zeron 100A193 B8RA193 B8SNitronic 50Nitronic 60A453 660
Representative capabilities — every item is manufactured or certified to your specification. Confirm requirements with our estimating team.
Applications
Pipeline packagesSkids
