Aerospace fasteners & bolting.
Bolting and machined hardware for ground support, test stands, launch pads and tooling.
Launch pads, engine test stands, ground support equipment and tooling use heavy industrial bolting: anchor bolts, flange studs for cryogenic and high-pressure lines, structural bolts and machined pins. We manufacture them to your drawings and specifications in alloy, stainless and nickel alloys, with material certification.
See where the bolts go.

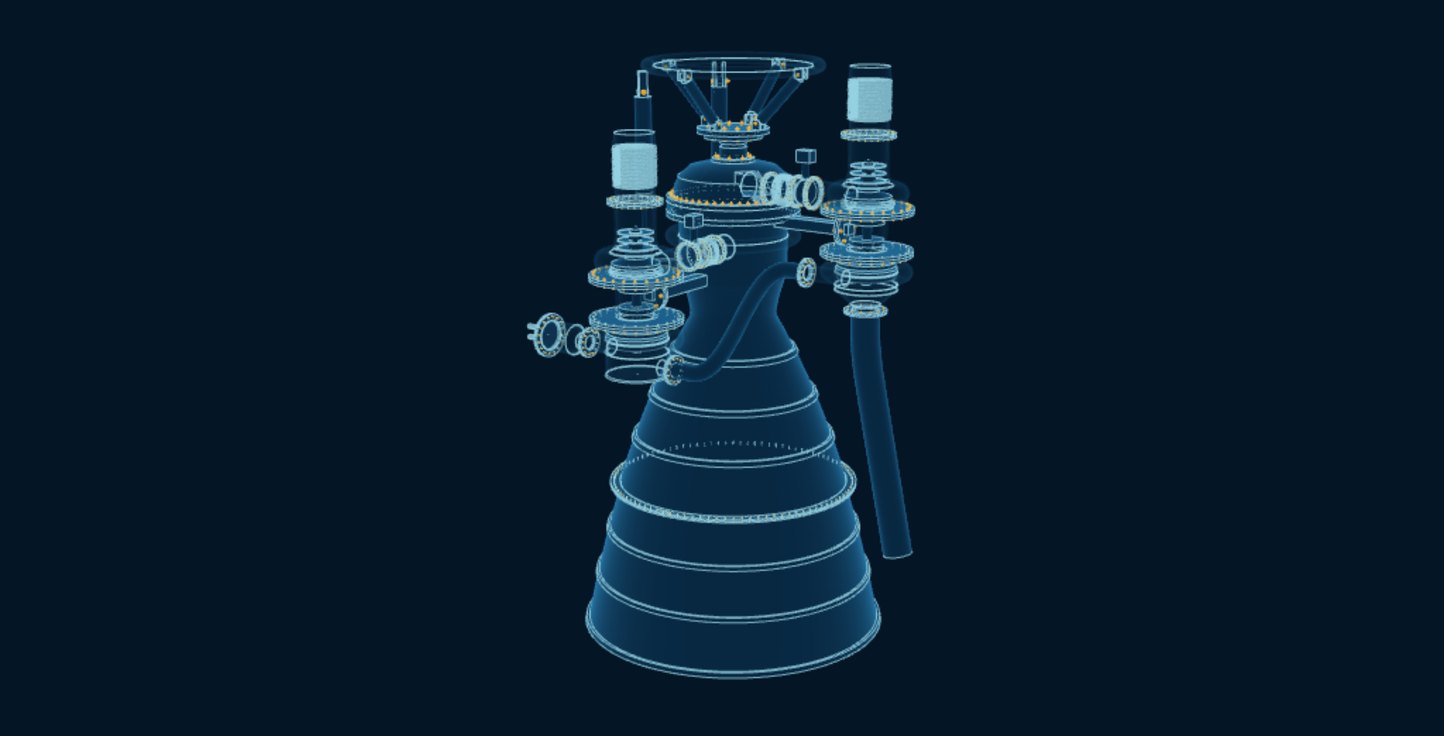

Rocket Engine
Injector and dome and turbopump mount studs and nuts, plus nozzle extension flange bolts, pump and turbine housing studs, pump inlet flange bolts, discharge duct flange bolts, main valve flange bolts, hot-gas duct flange bolts, gimbal block bolts and studs, thrust strut end bolts and actuator attach bolts.

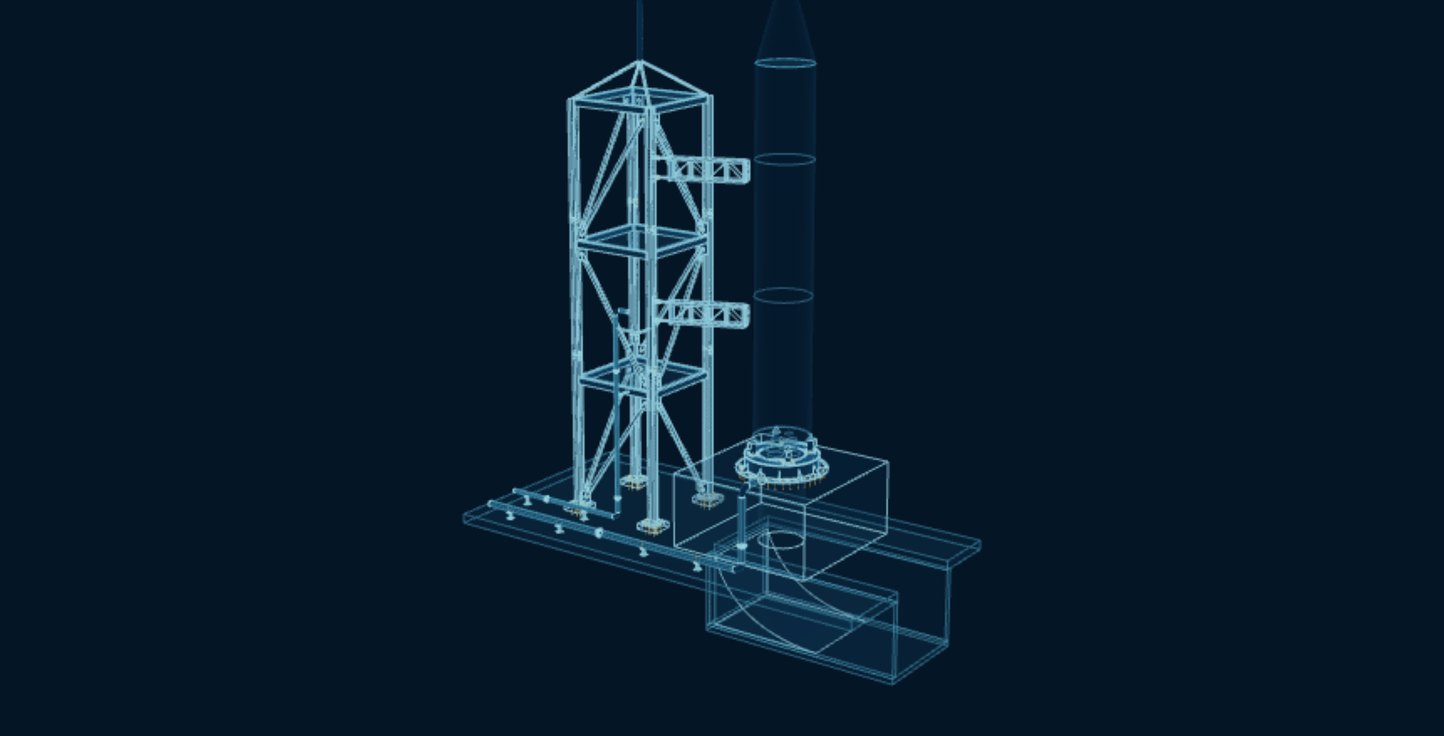

Launch Pad
Hold-down post base, launch mount ring, cryogenic line flange and deluge line flange studs and nuts, plus tower anchor bolts, nuts and washers, column splice bolts, bracing bolts, swing arm hinge pins and nuts and pipe support U-bolts.

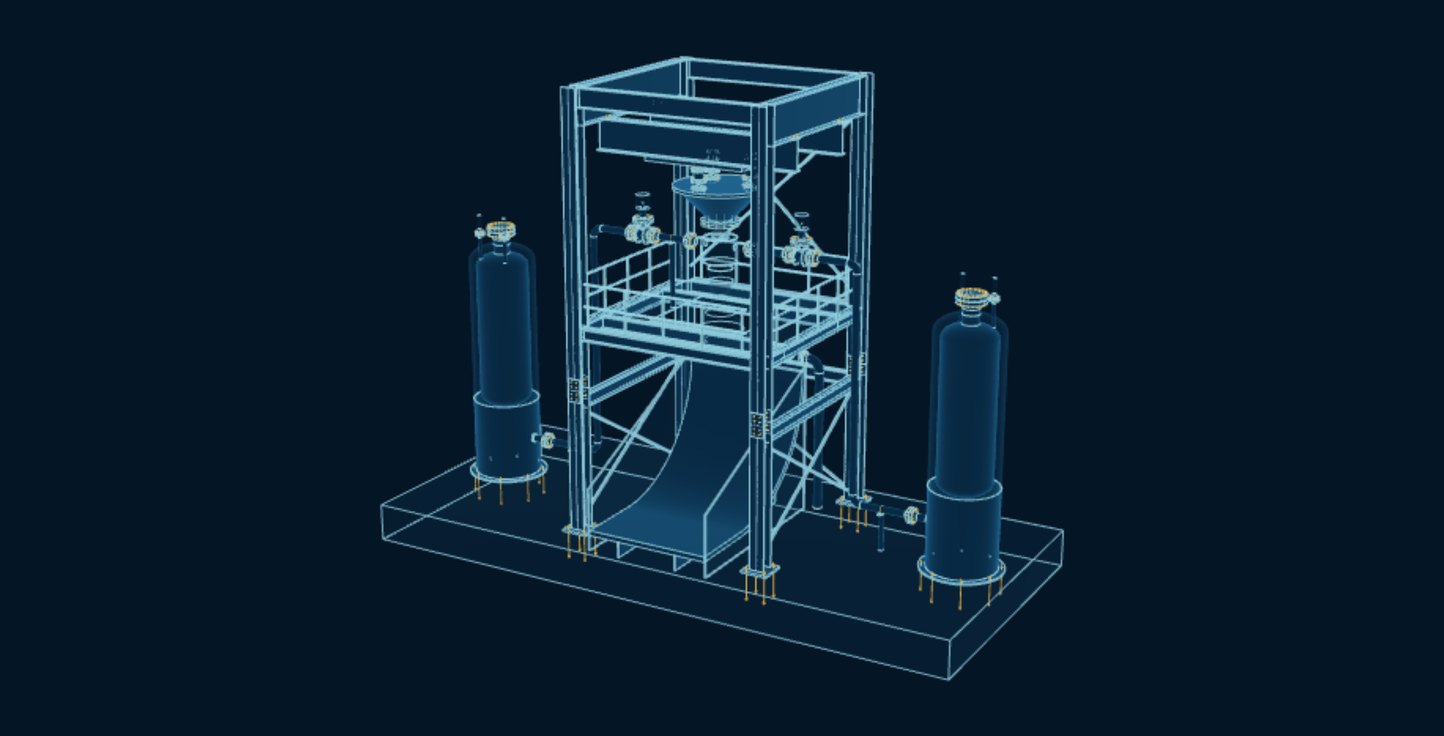

Engine Test Stand
Manway, tank nozzle, feed line flange, valve bonnet and deluge flange studs and nuts, plus thrust adapter to engine bolts, load cell and flexure bolts, thrust structure bolts, column splice bolts, anchor bolts, nuts and washers and pipe support U-bolts.

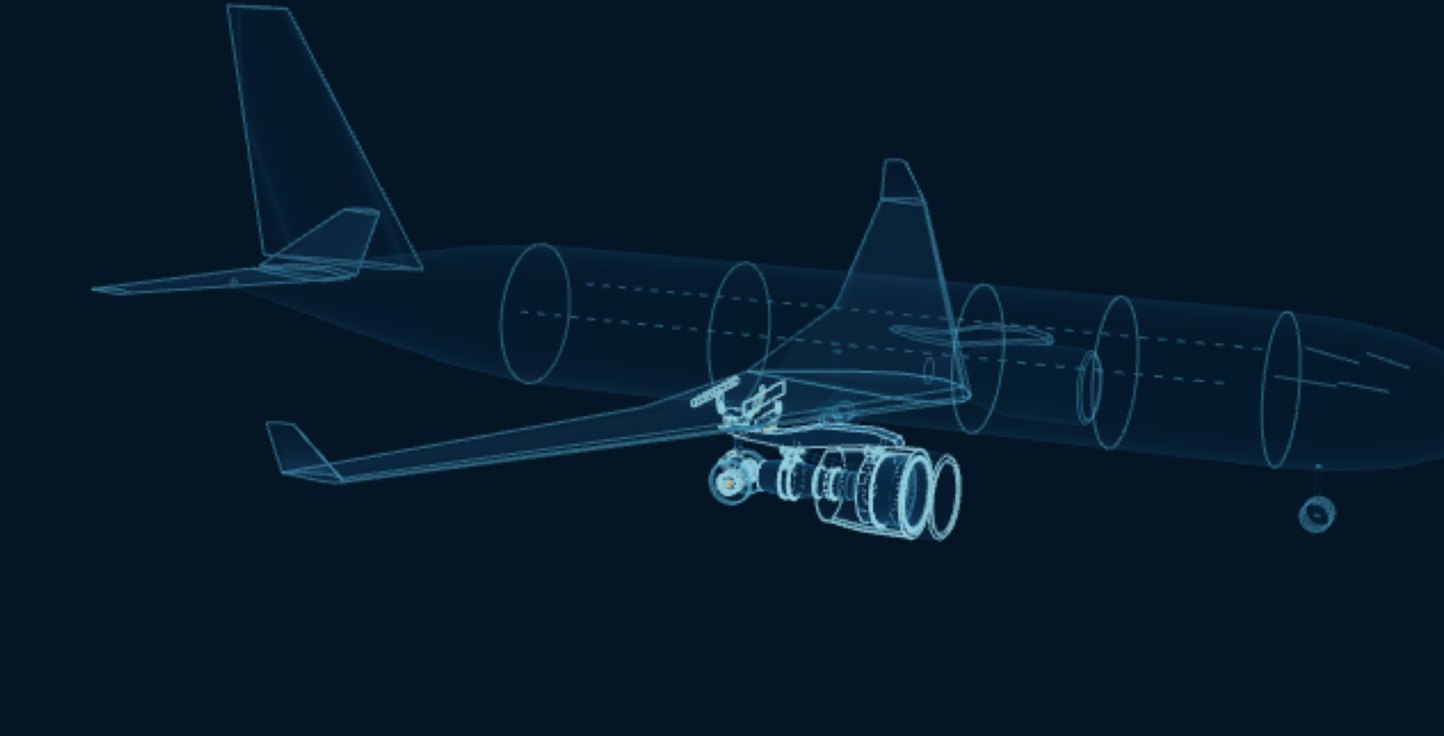

Aircraft Landing Gear & Engine Pylon
Wheel tie bolts and nuts, axle nuts, brake attach bolts, torque link pins and nuts, side and drag brace pins, retraction actuator attach bolts, trunnion pins and retaining bolts, forward engine mount bolts, aft engine mount bolts, thrust link pins, pylon attach pins, fan and compressor case flange bolts and turbine and exhaust flange bolts.
Grades aerospace runs on.

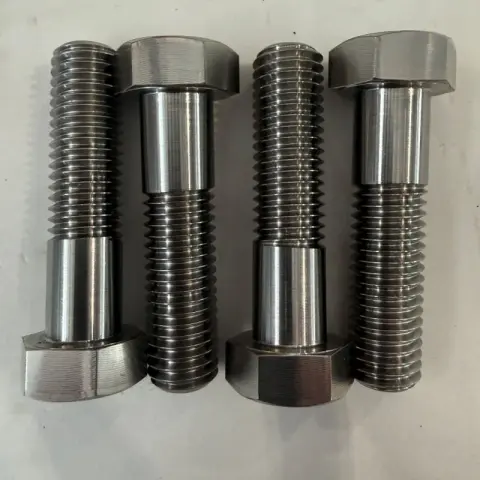

ASTM A453 Grade 660 (A-286)
A-286 bolting for the hottest joints — 130 ksi at room temperature and rated by stress-rupture at 1200 °F, for gas and steam turbines, exhaust and high-temperature process equipment.
ASTM B637 bar · AMS 5662 / 5663 · API 6A CRAInconel 718 (UNS N07718)
The premier high-strength nickel superalloy — 185 ksi tensile and 150 ksi yield from cryogenic temperatures to 1200 °F, with corrosion and sour-gas resistance to match.
ASTM A320 / ASME SA-320ASTM A320 Grade L7
The low-temperature twin of B7 — same 4140 Cr-Mo steel, same 125 ksi strength, but impact tested at −150 °F for cryogenic and cold-climate service.

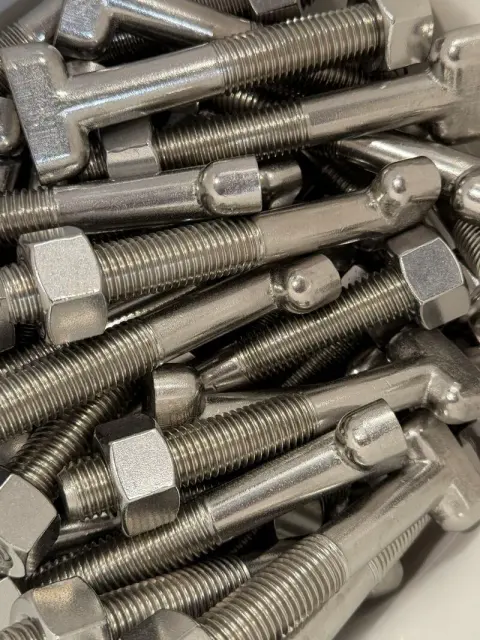

ASTM A193 / ASME SA-193ASTM A193 Grade B8M Class 1 (316 Stainless)
316 stainless bolting with molybdenum for chloride and pitting resistance — offshore, marine, chemical and coastal plant fasteners.
ASTM A322 bar · ASTM A434 Q&T barAISI 4340 Alloy Steel (UNS G43400)
The deep-hardening high-strength steel — 4340 reaches 155 ksi and beyond in large sections — for crankshafts, drilling tools, aircraft parts and A320 L43 bolting.
Jobs we’ve made in these grades.
