Mining & Minerals fasteners & bolting.
Heavy hex bolting, U-bolts and wear parts built to survive abrasion, shock and weather.
Crushers, mills, and conveyors shake fasteners loose and wear them out. High-strength alloy bolting, 12-point heads for confined torque, and abrasion-tolerant custom machined components built for the maintenance cycle.
See where the bolts go.

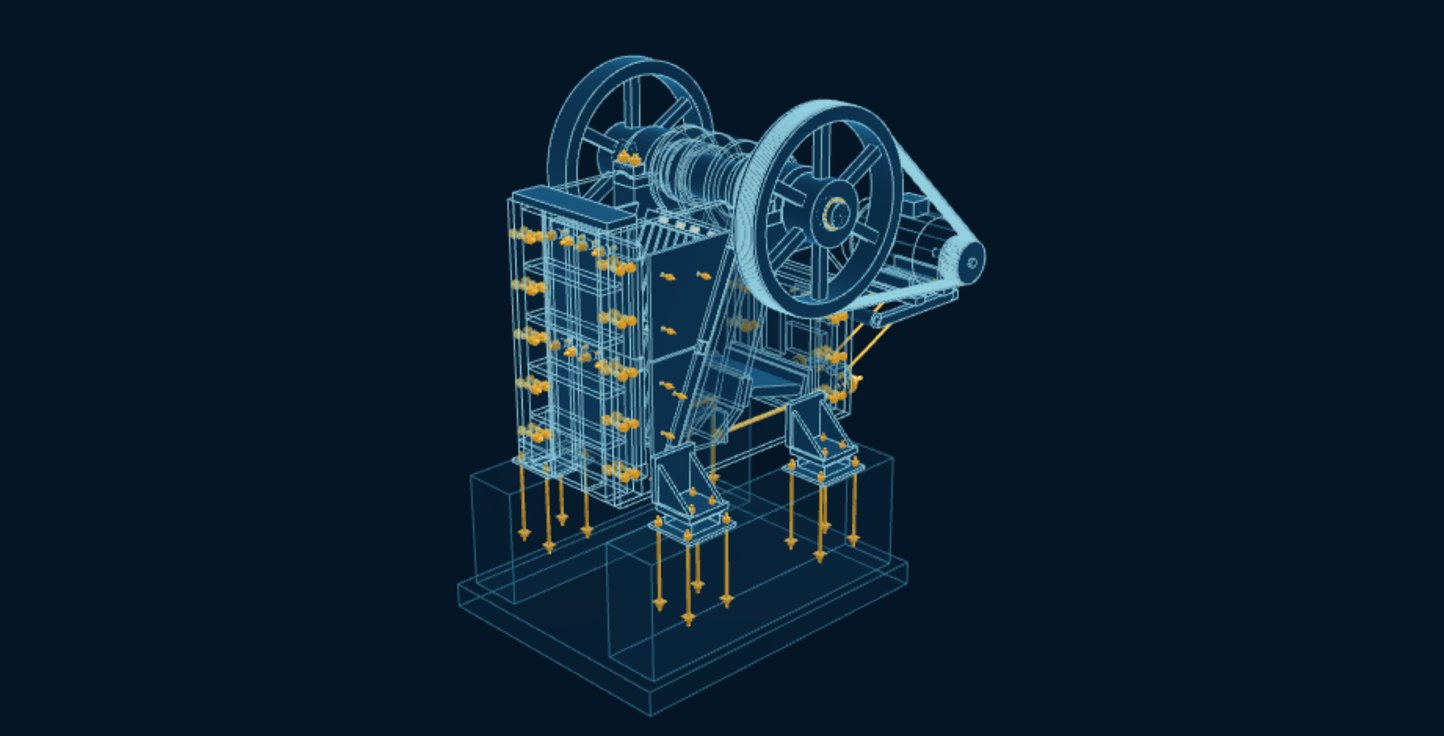

Mining Jaw Crusher
Main bearing cap studs and nuts, frame bolts, jaw die wedge bolts, cheek plate bolts, flywheel locking assembly screws, tension rods, nuts and washers, motor and motor base bolts, belt tensioning rods, isolation mount bolts and foundation anchor bolts.

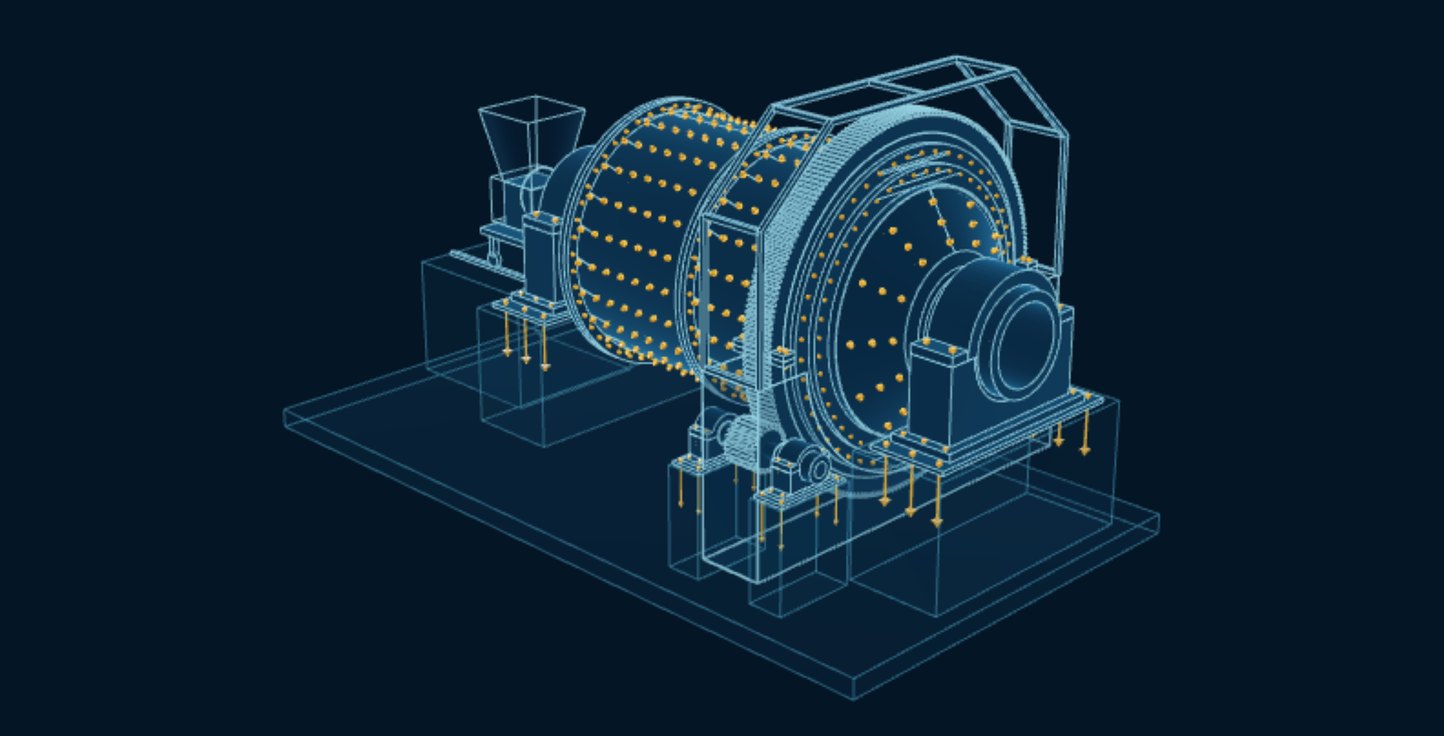

Grinding Mill
Shell liner bolts, liner bolt nuts, seals and cup washers, head and grate liner bolts, shell flange bolts, head-to-shell flange bolts, girth gear joint studs, girth gear mounting bolts, pinion bearing bolts, trunnion bearing cap and pedestal bolts and sole plate anchor bolts.

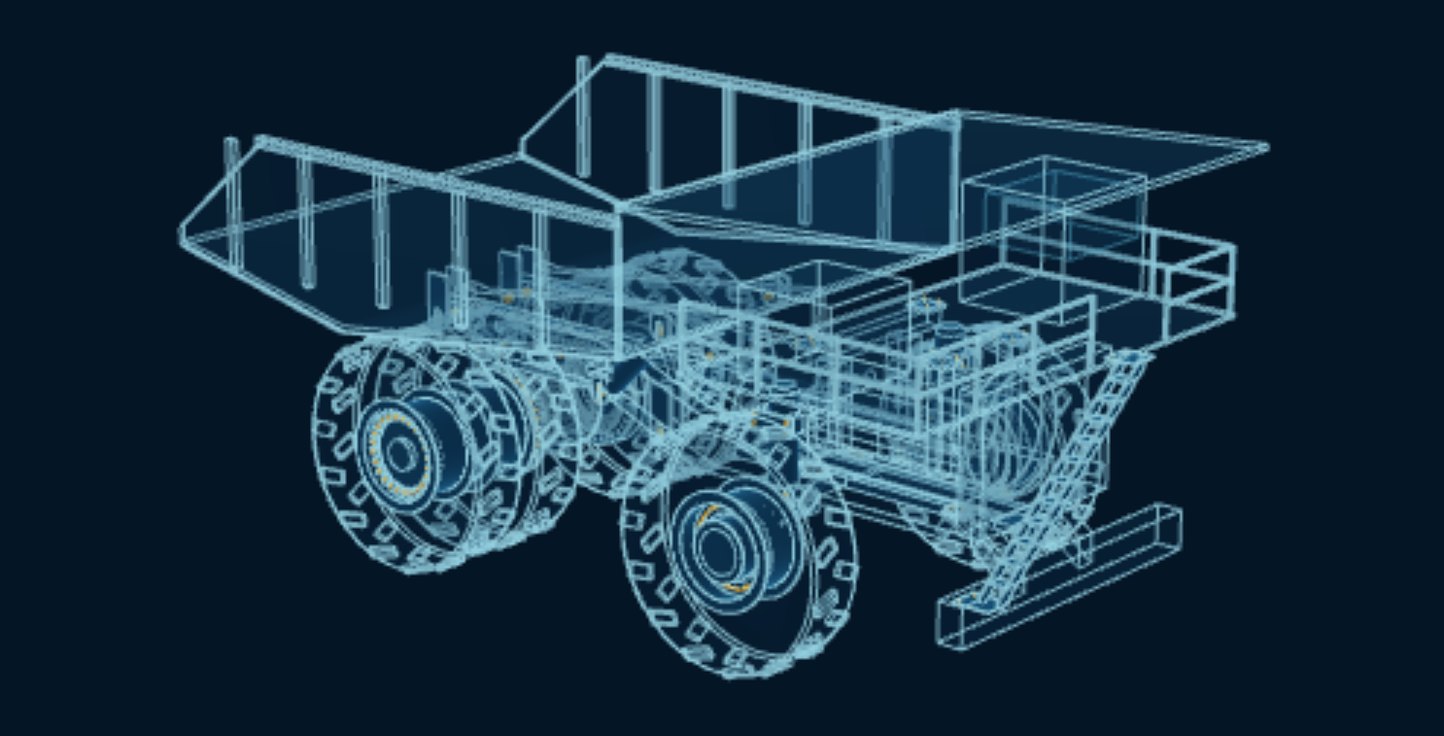

Mining Haul Truck
Front wheel and rim clamp (cleat) studs and nuts, plus wheel motor mounting bolts, spindle-to-strut cap screws, front strut cap bolts, steering pins and keeper bolts, rear axle link pins and keeper bolts, hoist cylinder pins and keeper bolts, body pivot pins and retainer bolts, engine module mount bolts and deck and ladder bolts.

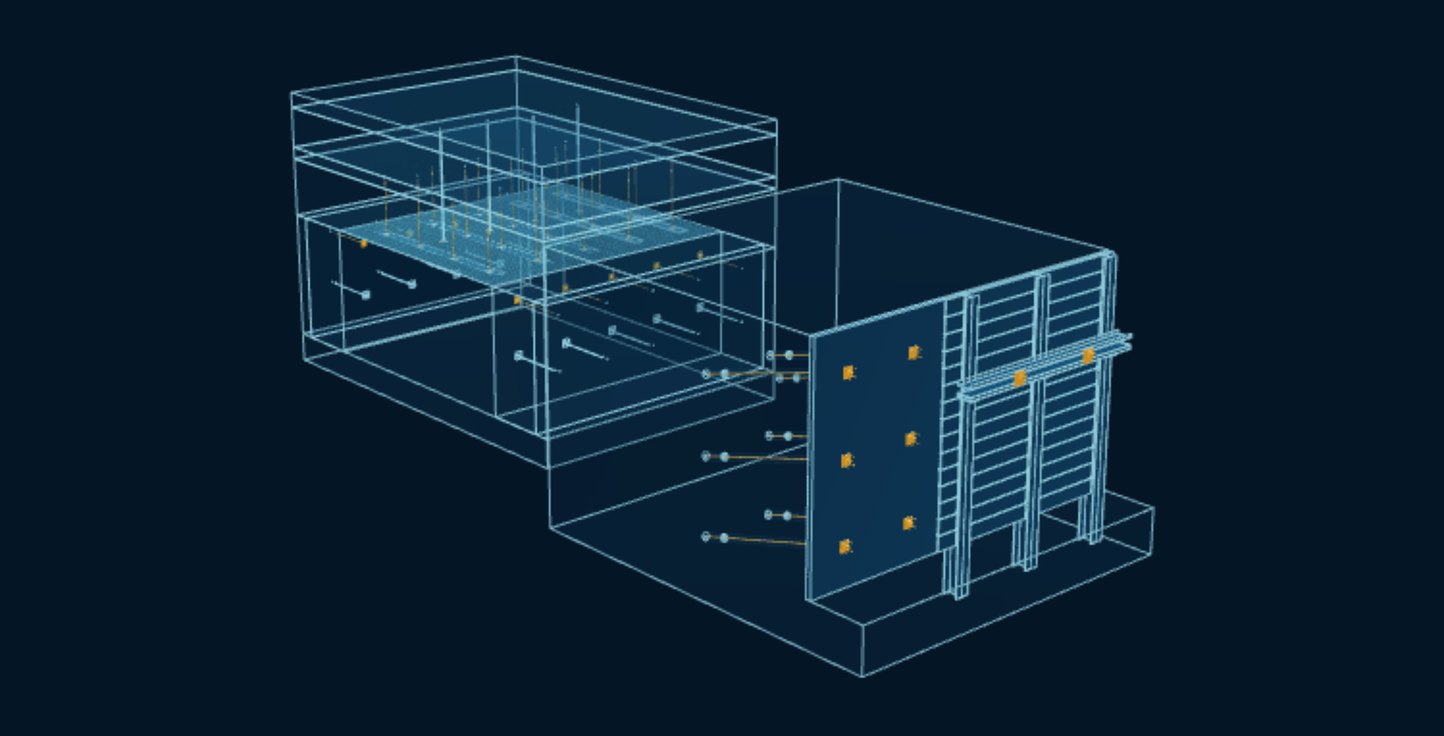

Ground Support
Mechanical rock bolts, expansion shells and plugs, bearing plates and hardened washers, resin rebar bolts, dome plates, spherical seats and nuts, cable bolt plates, rib bolts, plates and nuts, threaded bar ground anchors, bar couplers, anchor plates and bevel washers, anchor nuts and washers, soil nail bars and soil nail plates, bevel washers and nuts.
Grades mining & minerals runs on.
ASTM F3125 Grade A325 Structural Bolts (120 ksi)
The structural steel connection bolt: heavy hex head, 120 ksi tensile, ½ to 1½ in., quenched and tempered, with the twist-off F1852 and metric A325M variants in the same specification.
ASTM F3125/F3125M Grade A490 · Type 1 and Type 3ASTM F3125 Grade A490 Structural Bolts (150 ksi)
The high-strength structural bolt: alloy steel, 150 to 173 ksi tensile, ½ to 1½ in., never hot-dip galvanized — with the twist-off F2280 and metric A490M variants in the same specification.
ASTM A354 Grade BD · SAE J429 Grade 8SAE Grade 8 / ASTM A354 Grade BD Bolts (150 ksi)
The high-strength alloy bolt: quenched and tempered alloy steel at 150 ksi tensile and 130 ksi yield in all sizes to 4 in. — Grade 8 in SAE terms, A354 BD in ASTM terms.
ASTM A322 bar · ASTM A434 Q&T barAISI 4140 Alloy Steel (UNS G41400)
The workhorse Cr-Mo steel behind B7, L7 and Grade 7 — the bar stock for studs, shafts, couplings and any part that needs 100 to 150 ksi and good toughness.
ASTM A322 bar · ASTM A434 Q&T barAISI 4340 Alloy Steel (UNS G43400)
The deep-hardening high-strength steel — 4340 reaches 155 ksi and beyond in large sections — for crankshafts, drilling tools, aircraft parts and A320 L43 bolting.
