Off the floor · Studs & Stud Bolts · posted 9mo ago

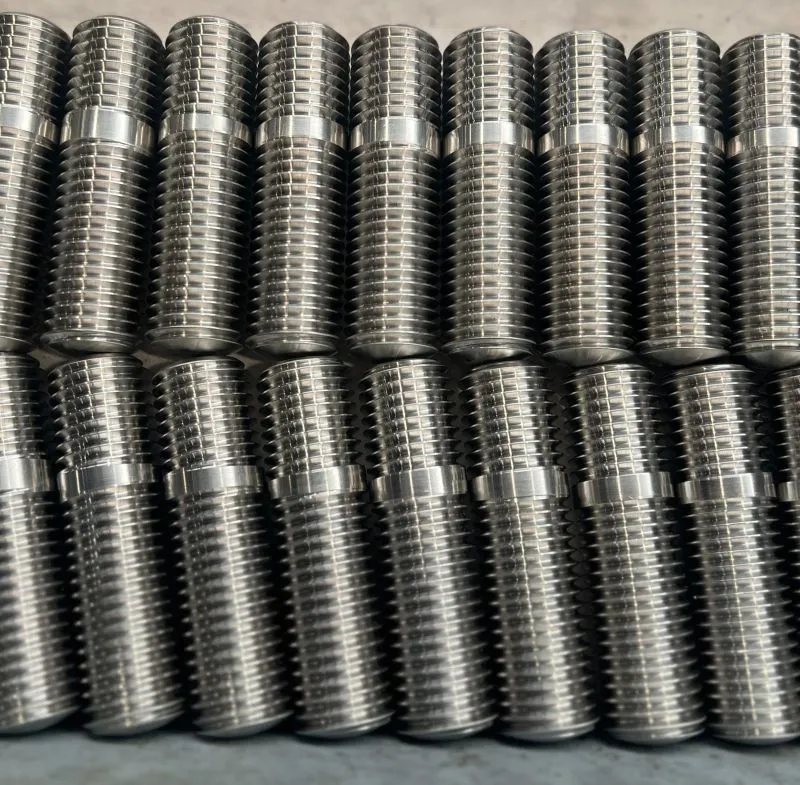

1-1/8-7 UNC-2A x 4" Double End Stud
ASTM A193 B8M Class 2. Machined to the customer's drawing in our Houston shop.
Job details
PartDouble End Stud
Thread1-1/8-7 UNC-2A
Length4"
MaterialASTM A193 B8M Class 2
Grade pagesA193 B8M Class 2 · A193 B8M Class 1
Product familyStuds & Rods
Made inHouston, Texas · ISO 9001 certified
1-1/8-7 UNC-2A x 4” double end stud is machined from ASTM A193 B8M Class 2 stainless steel per drawing. Features threads on both ends for secure, dependable assembly.
Studs are cut from certified bar, threaded by rolling or single-point cutting to the class called out, and chamfered and marked before they leave. Double-end and tap-end patterns, special lengths and drilled or coated variants are all made to the drawing.
About the material: 316 stainless bolting cold worked after solution treatment — 110 ksi tensile in ¾ in. and under, with B8M2 and B8M3 classes for diameters to 3 in. and beyond. Read the A193 B8M Class 2 data page →
