Off the floor · Studs & Stud Bolts

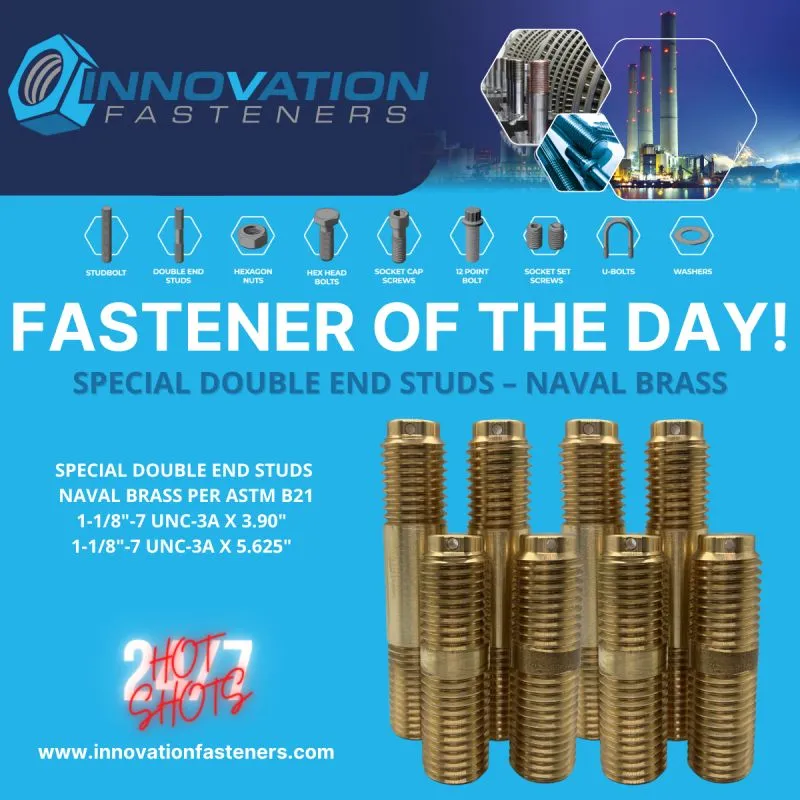

1-1/8"-7 UNC-3A x 3.90" and 5.625" Special Double End Studs
Naval Brass 464 (ASTM B21). Machined to the customer's drawing in our Houston shop.
Job details
Partand 5.625" Special Double End Studs
Thread1-1/8"-7 UNC-3A
Length3.90"
MaterialNaval Brass 464 (ASTM B21)
Grade pageC46400 Naval Brass
Product familyStuds & Rods
Made inHouston, Texas · ISO 9001 certified
Special double end studs in 1-1/8"-7 UNC-3A, made in 3.90" and 5.625" lengths from 464 naval brass to ASTM B21 for salt and freshwater service.
Studs are cut from certified bar, threaded by rolling or single-point cutting to the class called out, and chamfered and marked before they leave. Double-end and tap-end patterns, special lengths and drilled or coated variants are all made to the drawing.
About the material: The marine brass — 1 percent tin for seawater resistance — and the ASTM F468 structural brass fastener alloy (F468D). Read the C46400 Naval Brass data page →
