Off the floor · Socket & Special Screws

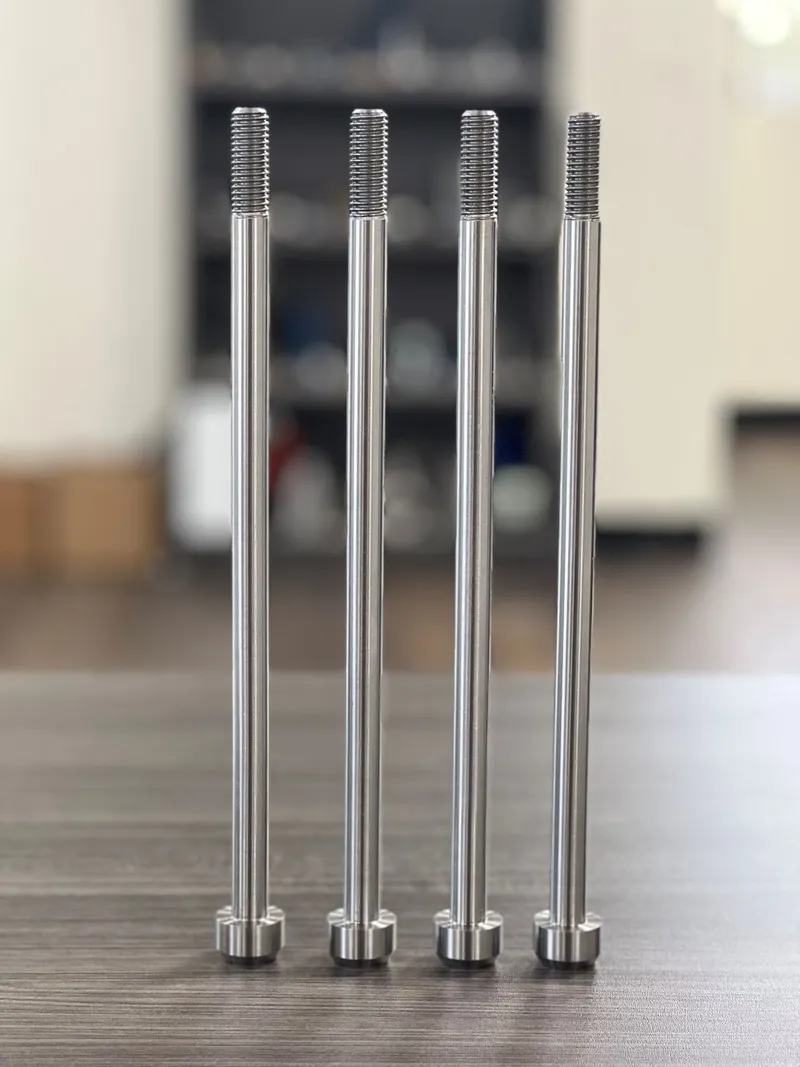

1/2"-13 UNC-2A x 10.75" Special Socket Head Cap Screw
ASTM A565 Grade 616, USA melt. Machined to the customer's drawing in our Houston shop.
Job details
PartSpecial Socket Head Cap Screw
Thread1/2"-13 UNC-2A
Length10.75"
MaterialASTM A565 Grade 616, USA melt
Product familySocket Products
Made inHouston, Texas · ISO 9001 certified
1/2"-13 UNC-2A x 10.75" special socket head cap screw made per drawing for a critical application. Material is USA-melted ASTM A565 Grade 616.
Special socket products are machined from bar where the specification allows, with the socket broached and the threads rolled, or cut where the specification or order allows, then heat treated and plated as the specification requires. Shoulder, low-head, flat-head and set-screw patterns follow ASME B18.3 unless the drawing says otherwise.
