Off the floor · Studs & Stud Bolts

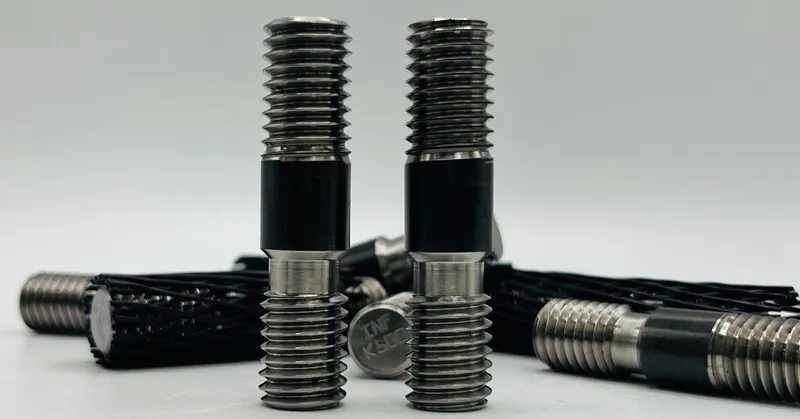

1/2"-13 UNC-2A x 2.12" Stud
Monel K500 (QQ-N-286). Machined to the customer's drawing in our Houston shop.
Job details
PartStud
Thread1/2"-13 UNC-2A
Length2.12"
MaterialMonel K500 (QQ-N-286)
Grade pageMonel K-500
Product familyStuds & Rods
Made inHouston, Texas · ISO 9001 certified
1/2"-13 UNC-2A x 2.12" stud made to customer drawing from Monel K500 to QQ-N-286, for strength and corrosion resistance.
Studs are cut from certified bar, threaded by rolling or single-point cutting to the class called out, and chamfered and marked before they leave. Double-end and tap-end patterns, special lengths and drilled or coated variants are all made to the drawing.
About the material: Monel 400 corrosion resistance with more than twice the strength — 130 ksi tensile, 90 ksi yield and 24 to 37 HRC — for pump shafts, subsea fasteners and oil-tool components. Read the Monel K-500 data page →
