1-5/8"-8 UN-2A x 105" Double End Studs
316 Stainless Steel. Machined to the customer's drawing in our Houston shop.
Job details
PartDouble End Studs
Thread1-5/8"-8 UN-2A
Length105"
Material316 Stainless Steel
Grade pageA193 B8M Class 1
Product familyStuds & Rods
Made inHouston, Texas · ISO 9001 certified

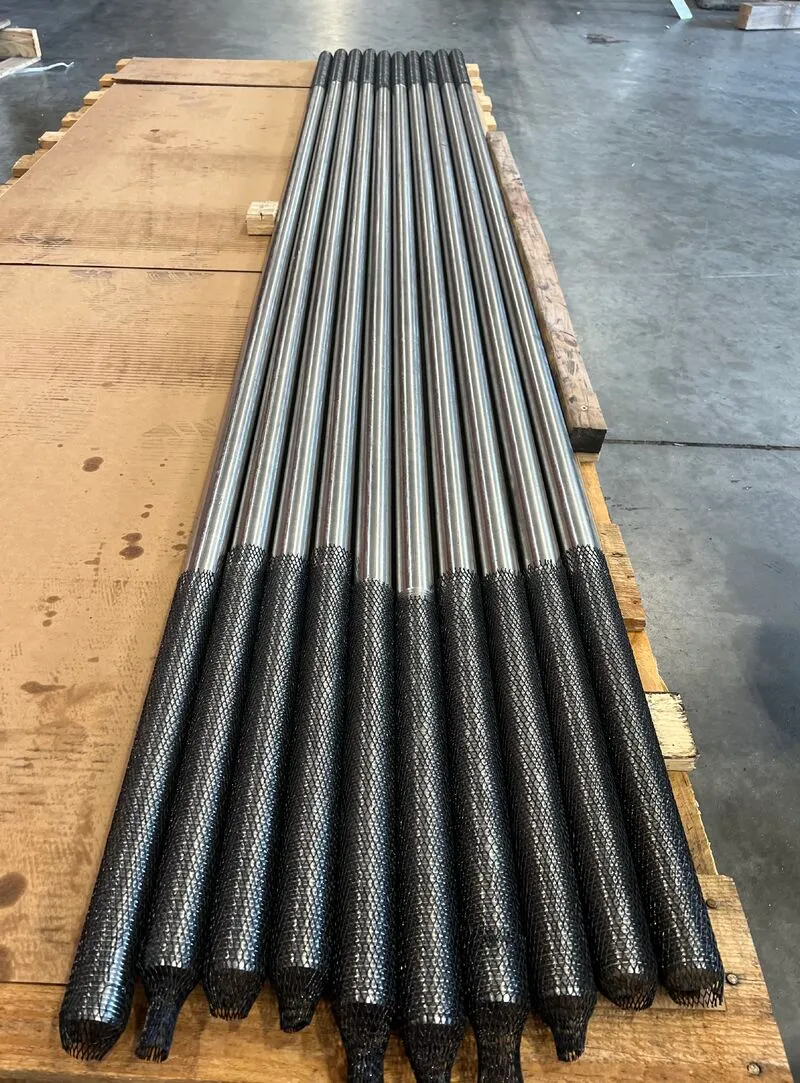

1-5/8"-8 UN-2A × 105" double end studs in 316 stainless steel with 15" of thread each end.
Studs are cut from certified bar, threaded by rolling or single-point cutting to the class called out, and chamfered and marked before they leave. Double-end and tap-end patterns, special lengths and drilled or coated variants are all made to the drawing.
About the material: 316 stainless bolting with molybdenum for chloride and pitting resistance — offshore, marine, chemical and coastal plant fasteners. Read the A193 B8M Class 1 data page →
