Off the floor · Studs & Stud Bolts · posted 8mo ago

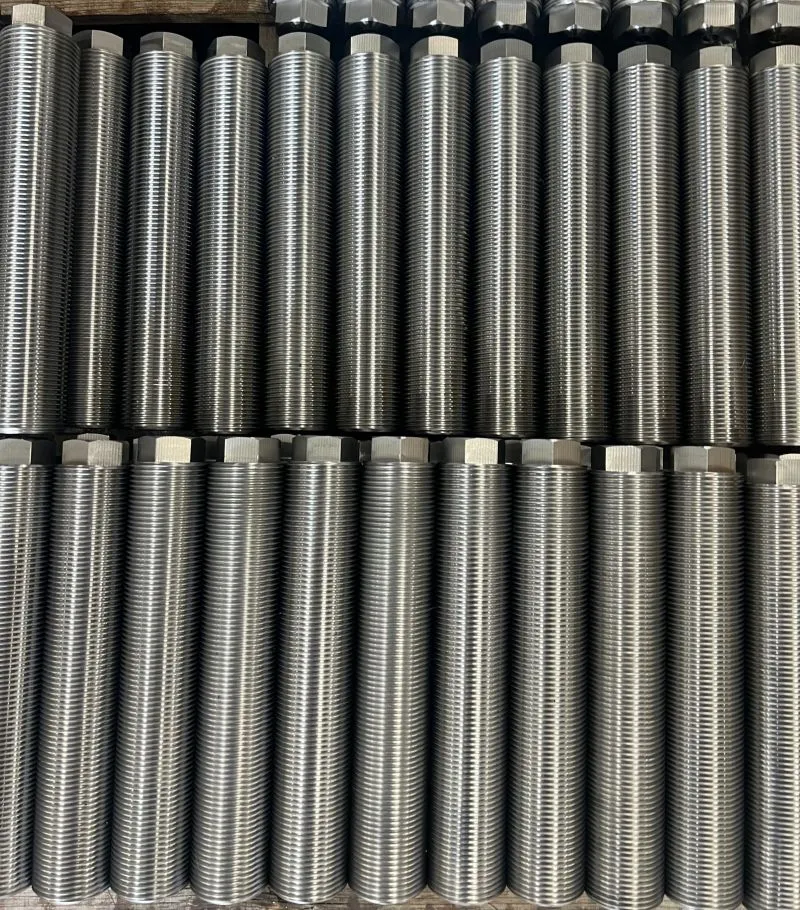

2"-8 UN-2A x 11" Gate Stud
ASTM A193 Grade B7. Machined to the customer's drawing in our Houston shop.
Job details
PartGate Stud
Thread2"-8 UN-2A
Length11"
MaterialASTM A193 Grade B7
Grade pageA193 B7
Product familyStuds & Rods
Made inHouston, Texas · ISO 9001 certified
Gate Stud is built for true print-to-part accuracy 2”-8 UN-2A x 11”. Per Print 2”-8 UN-2A Threads. Per Print ASTM A193 Grade B7 Material Precision you can count on.
Studs are cut from certified bar, threaded by rolling or single-point cutting to the class called out, and chamfered and marked before they leave. Double-end and tap-end patterns, special lengths and drilled or coated variants are all made to the drawing.
About the material: The workhorse alloy-steel bolting grade for flanges, valves and pressure equipment — 125 ksi tensile, quenched and tempered 4140. Read the A193 B7 data page →
