Off the floor · Studs & Stud Bolts · posted 3yr ago

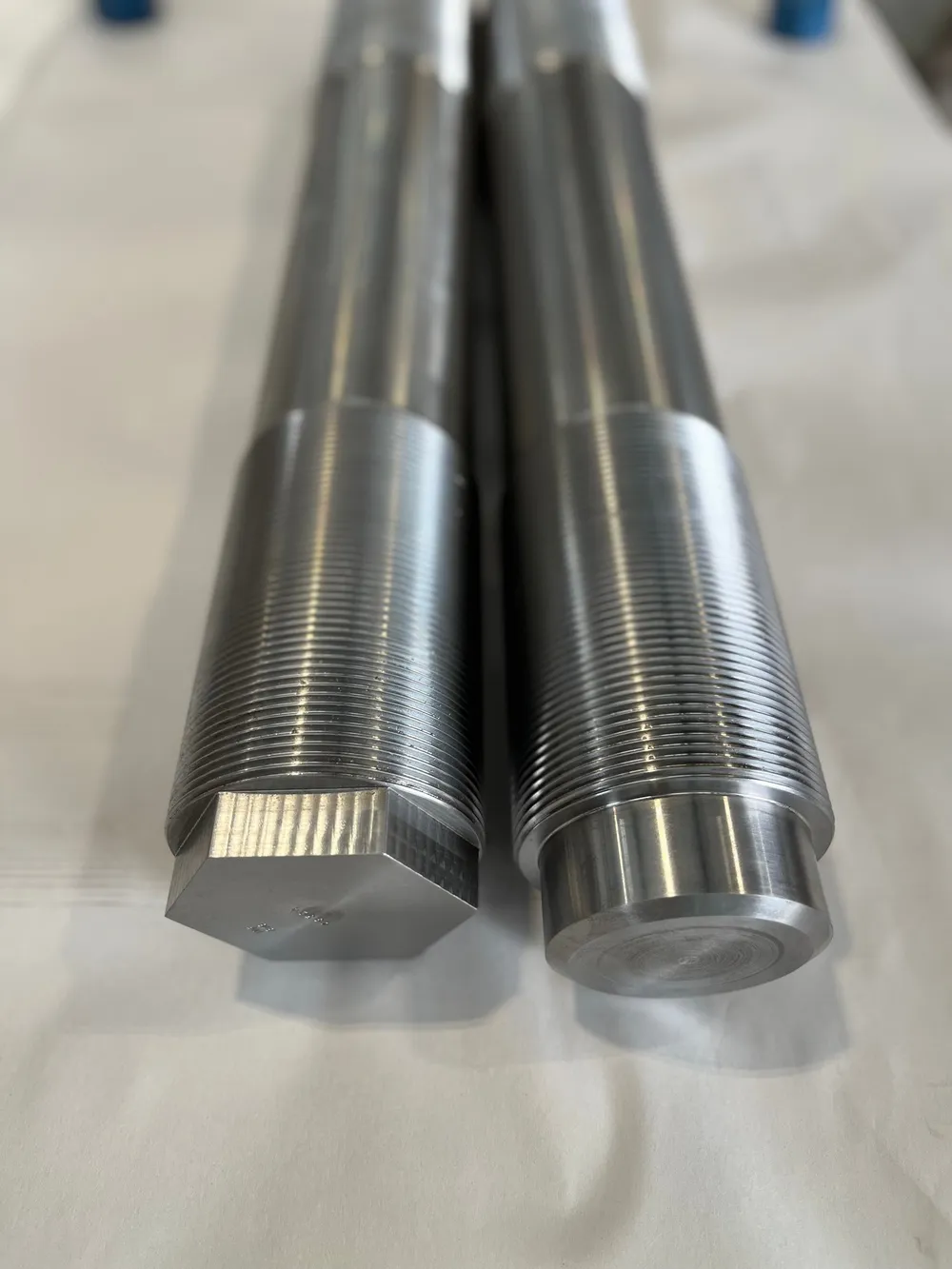

3-3/4"-8 UN-2A x 24-1/2" Double End Studs
ASTM A193 B16. Machined to the customer's drawing in our Houston shop.
Job details
PartDouble End Studs
Thread3-3/4"-8 UN-2A
Length24-1/2"
MaterialASTM A193 B16
Grade pageA193 B16
Product familyStuds & Rods
Made inHouston, Texas · ISO 9001 certified
3-3/4"-8 UN-2A × 24-1/2" double end studs machined from ASTM A193 B16 for high-temperature bolting.
Studs are cut from certified bar, threaded by rolling or single-point cutting to the class called out, and chamfered and marked before they leave. Double-end and tap-end patterns, special lengths and drilled or coated variants are all made to the drawing.
About the material: Vanadium-strengthened Cr-Mo bolting that holds its strength where B7 starts to relax — steam turbines, HP steam flanges and hot valve bonnets. Read the A193 B16 data page →
