Off the floor · Studs & Stud Bolts · posted 6yr ago

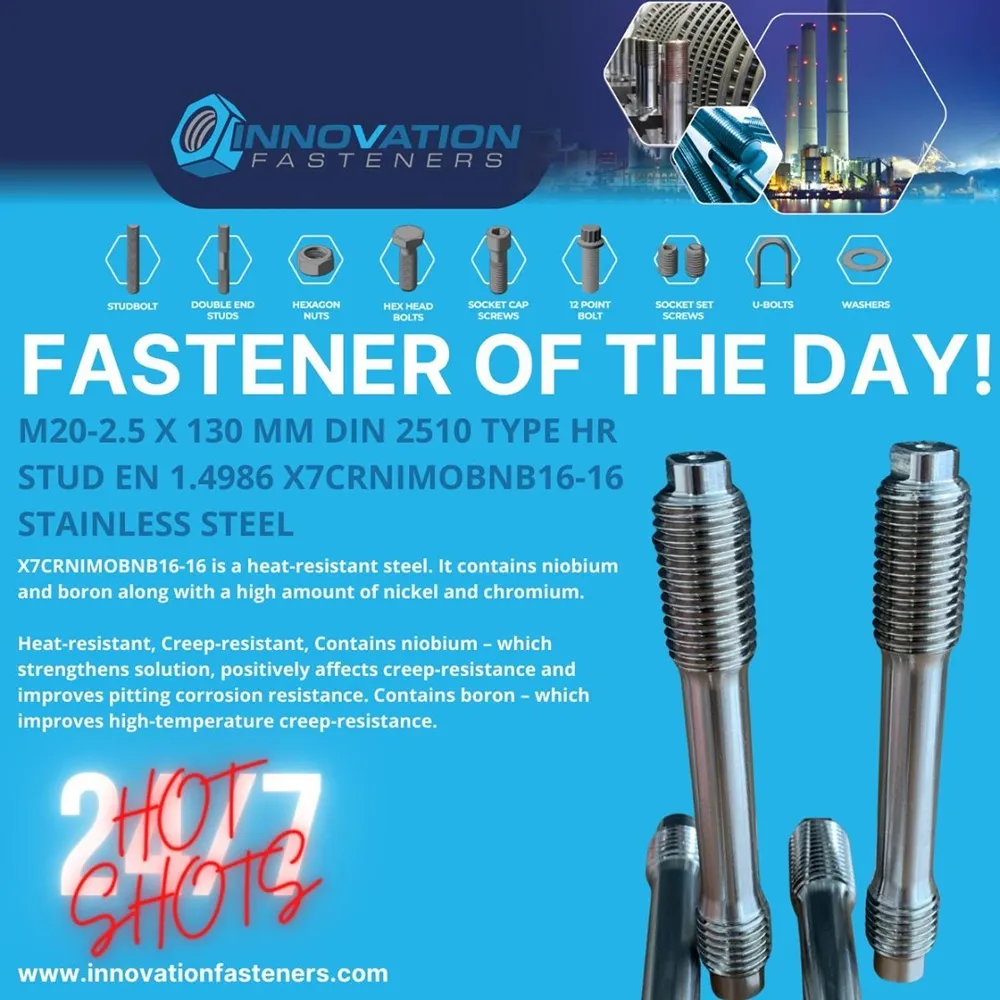

M20-2.5 x 130 mm DIN 2510 Type HR Stud
EN 1.4986 X7CrNiMoBNb16-16. Machined to the customer's drawing in our Houston shop.
Job details
PartDIN 2510 Type HR Stud
ThreadM20-2.5
Length130 mm
MaterialEN 1.4986 X7CrNiMoBNb16-16
Product familyStuds & Rods
Made inHouston, Texas · ISO 9001 certified
M20-2.5 × 130 mm DIN 2510 Type HR stud in EN 1.4986 (X7CrNiMoBNb16-16) creep-resistant stainless steel for high-temperature bolting.
Studs are cut from certified bar, threaded by rolling or single-point cutting to the class called out, and chamfered and marked before they leave. Double-end and tap-end patterns, special lengths and drilled or coated variants are all made to the drawing.
