Off the floor · Socket & Special Screws · posted 2yr ago
#10-24 UNC-2A x 5/8" Socket Head Cap Screw, Fully Threaded
ASTM A320 L7. Machined to the customer's drawing in our Houston shop.
Job details
PartSocket Head Cap Screw, Fully Threaded
Thread10-24 UNC-2A
Length5/8"
MaterialASTM A320 L7
Grade pageA320 L7
Product familySocket Products
Made inHouston, Texas · ISO 9001 certified

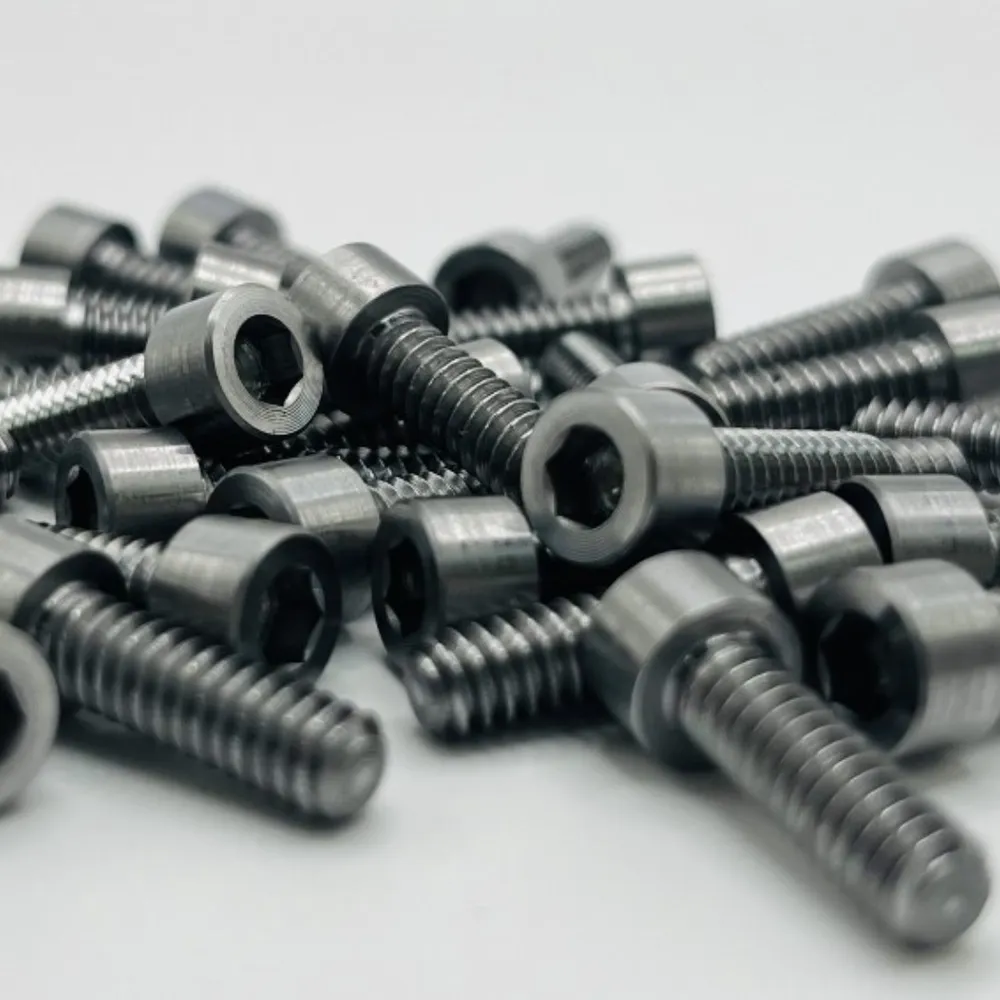

#10-24 UNC-2A × 5/8" fully threaded socket head cap screw in ASTM A320 L7 low-temperature alloy steel.
Special socket products are machined from bar where the specification allows, with the socket broached and the threads rolled, or cut where the specification or order allows, then heat treated and plated as the specification requires. Shoulder, low-head, flat-head and set-screw patterns follow ASME B18.3 unless the drawing says otherwise.
About the material: The low-temperature twin of B7 — same 4140 Cr-Mo steel, same 125 ksi strength, but impact tested at −150 °F for cryogenic and cold-climate service. Read the A320 L7 data page →
