Off the floor · Bolts & Screws · posted 1mo ago

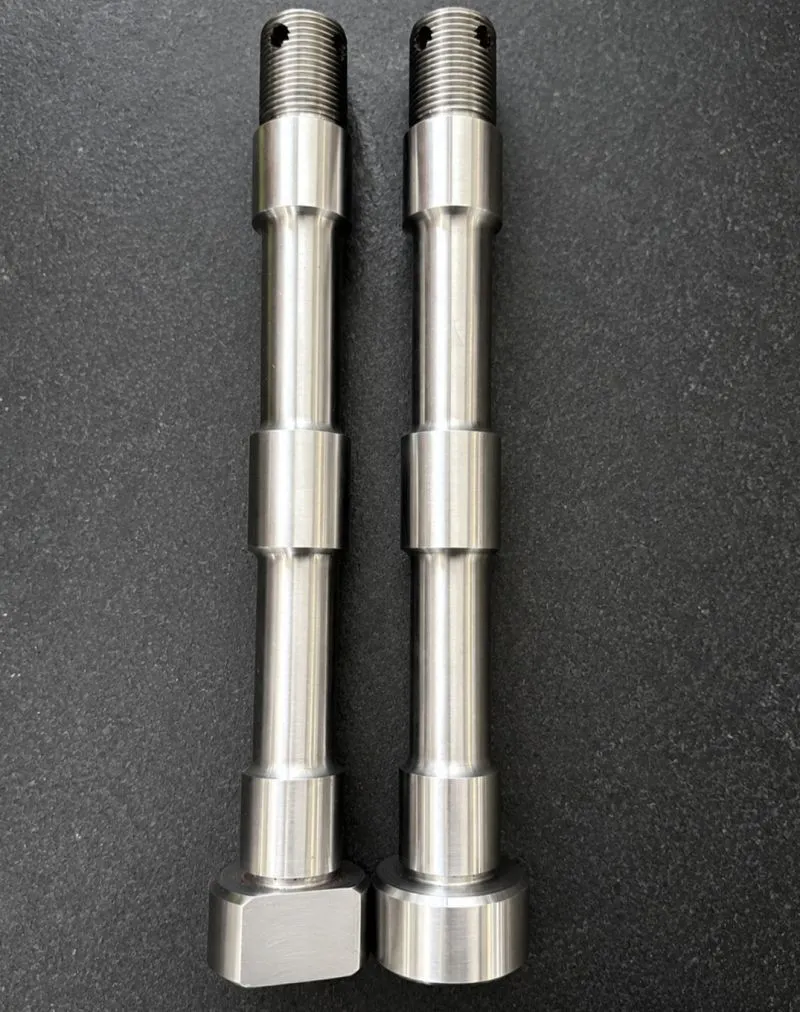

1"-14 UNF x 10.31" (+/-.010) Connecting Rod Bolt
ASTM A193 Grade B7. Machined to the customer's drawing in our Houston shop.
Job details
PartConnecting Rod Bolt
Thread1"-14 UNF
Length10.31"
MaterialASTM A193 Grade B7
Grade pageA193 B7
Product familyBolts & Screws
Made inHouston, Texas · ISO 9001 certified
1"-14 UNF x 10.31" (+/-.010) OAL · ASTM A193 Grade B7 · Rolled Threads Manufactured to customer drawing specifications, this ASTM A193 Grade B7 connecting rod bolt features rolled threads for enhanced fatigue strength and long-lasting performance.
Headed fasteners are turned or forged to the pattern on the drawing, threads rolled or cut to class, and supplied with the finish specified. Heavy hex, 12-point flange, eye and special-head styles are routine work here.
About the material: The workhorse alloy-steel bolting grade for flanges, valves and pressure equipment — 125 ksi tensile, quenched and tempered 4140. Read the A193 B7 data page →
