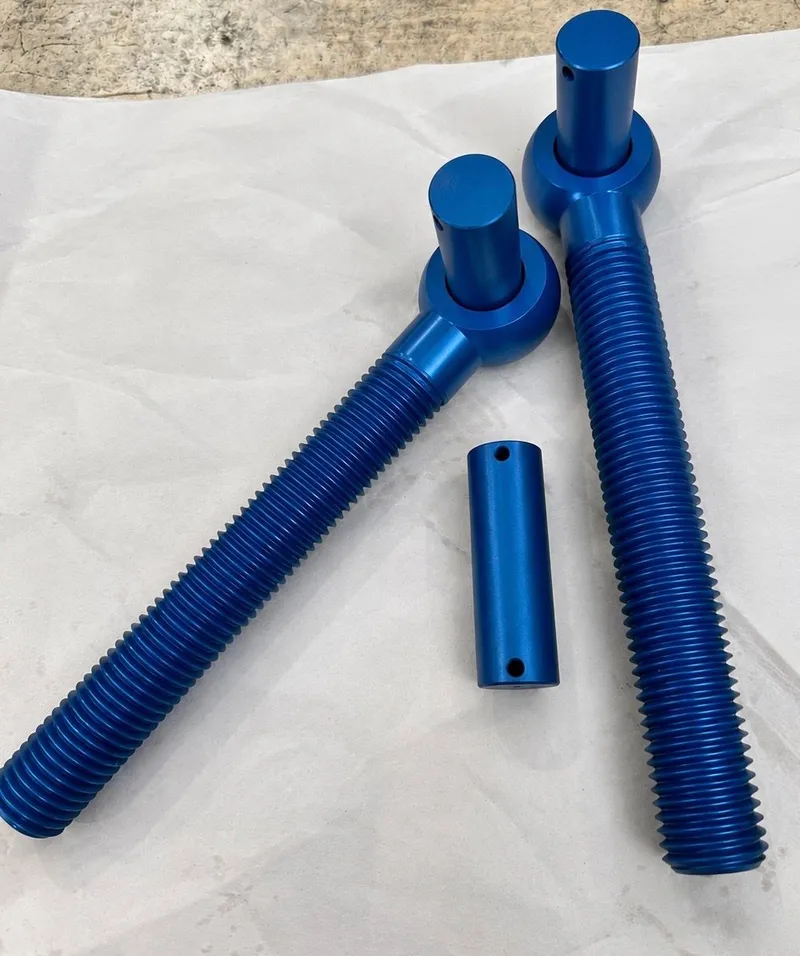

1"-8 UNC x 8" Eye Bolt with 7/8" x 2.625" Clevis Pin
ASTM A193 B7. Machined to the customer's drawing in our Houston shop.
Job details
PartEye Bolt with 7/8" x 2.625" Clevis Pin
Thread1"-8 UNC
Length8"
MaterialASTM A193 B7
Grade pageA193 B7
Product familyBolts & Screws
Made inHouston, Texas · ISO 9001 certified
A 1"-8 UNC x 8" eye bolt with its mating 7/8" x 2.625" clevis pin, machined from ASTM A193 B7 to customer specifications. Finished with a Xylan Blue (PTFE) coating for corrosion resistance.
Headed fasteners are turned or forged to the pattern on the drawing, threads rolled or cut to class, and supplied with the finish specified. Heavy hex, 12-point flange, eye and special-head styles are routine work here.
About the material: The workhorse alloy-steel bolting grade for flanges, valves and pressure equipment — 125 ksi tensile, quenched and tempered 4140. Read the A193 B7 data page →
