Off the floor · Nuts

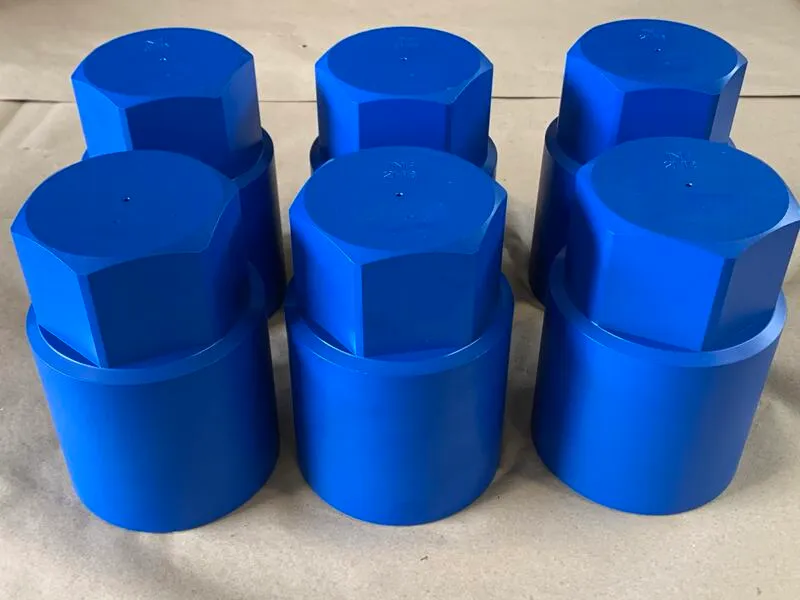

3-1/2"-8 UN-3B Hexagon Cap Nuts
ASTM A194 2H, Xylan 1424 coated. Machined to the customer's drawing in our Houston shop.
Job details
PartHexagon Cap Nuts
Thread3-1/2"-8 UN-3B
MaterialASTM A194 2H, Xylan 1424 coated
Grade pageA194 2H
Product familyNuts
Made inHouston, Texas · ISO 9001 certified
3-1/2"-8 UN-3B hexagon cap nuts in ASTM A194 2H, machined on a Doosan 400 lathe from 6" OD bar with the hex milled. The nuts were then heat treated, tested and Xylan 1424 coated.
Nuts are machined from bar or hex stock, tapped to the thread class specified, and heat treated where the grade requires it. Heavy hex, jam, castellated, cap, seal and coupling patterns are turned in-house, so special dimensions cost no more than standard ones.
About the material: The standard heavy hex nut for A193 B7 studs — quenched and tempered carbon steel, 175 ksi proof load, 24 to 35 HRC. Read the A194 2H data page →
