Off the floor · Machined Components
1-1/2"-12 UNF-2A x .870" DCV Plug
Nitronic 50. Machined to the customer's drawing in our Houston shop.
1 / 2
Job details
PartDCV Plug
Thread1-1/2"-12 UNF-2A
Length.870"
MaterialNitronic 50
Grade pageNitronic 50
Product familyMachined Components
Made inHouston, Texas · ISO 9001 certified

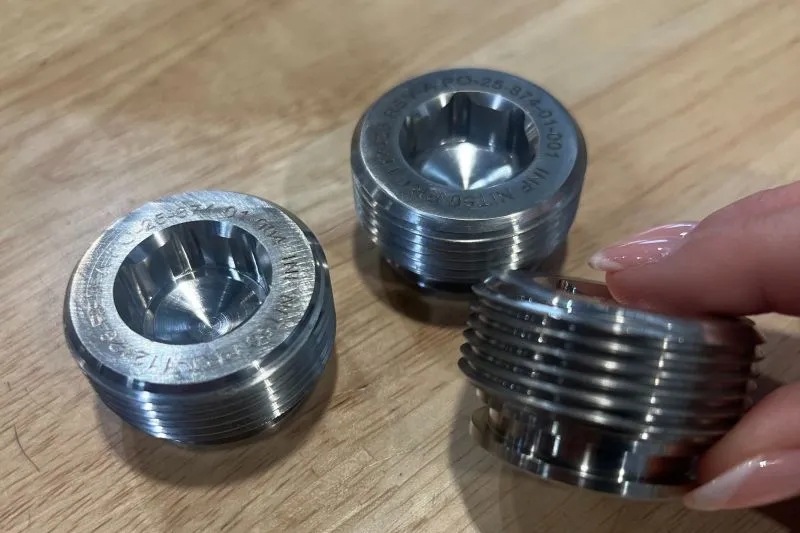

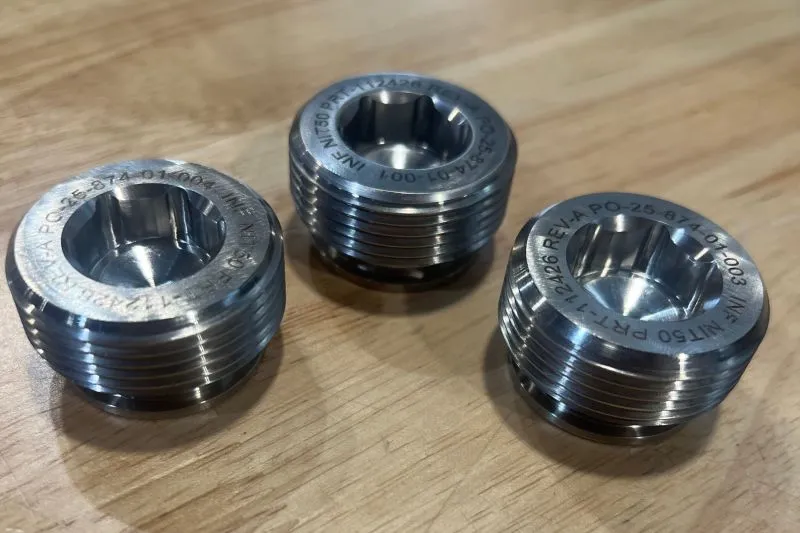

1-1/2"-12 UNF-2A x .870" DCV plug machined from Nitronic 50 with 105 ksi minimum yield strength. Held to a manufacturing tolerance of +/- .005".
Machined components are built to print from certified bar: turned, milled, drilled and tapped, then inspected against the drawing before shipment. Pins, sleeves, plugs, fittings and adapters are typical of this work.
About the material: Nearly twice the yield strength of 316 with better corrosion resistance, non-magnetic even after cold work — the marine and sour-service austenitic for shafts, valves and high-strength bolting. Read the Nitronic 50 data page →
