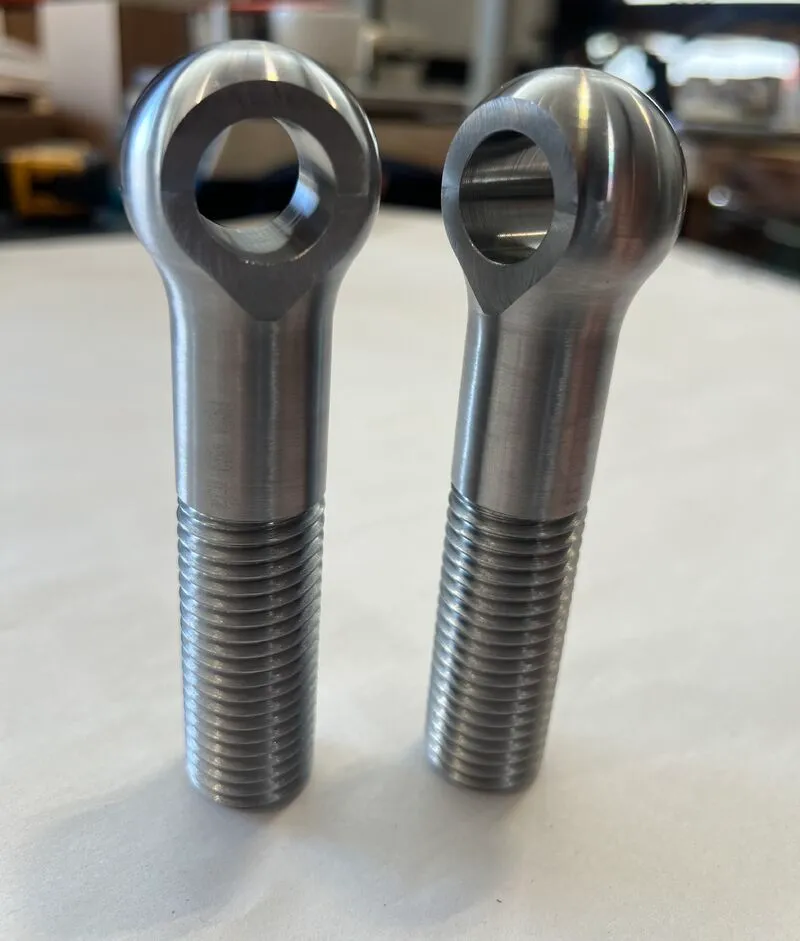

1-8 UNC-2A x 5-1/4" Eye Bolt
ASTM A193 B7. Machined to the customer's drawing in our Houston shop.
Job details
PartEye Bolt
Thread1-8 UNC-2A
Length5-1/4"
MaterialASTM A193 B7
Grade pageA193 B7
Product familyBolts & Screws
Made inHouston, Texas · ISO 9001 certified
1-8 UNC-2A × 5-1/4" OAL eye bolt in ASTM A193 Grade B7, plain finish.
Headed fasteners are turned or forged to the pattern on the drawing, threads rolled or cut to class, and supplied with the finish specified. Heavy hex, 12-point flange, eye and special-head styles are routine work here.
About the material: The workhorse alloy-steel bolting grade for flanges, valves and pressure equipment — 125 ksi tensile, quenched and tempered 4140. Read the A193 B7 data page →
