Off the floor · Machined Components · posted 6mo ago

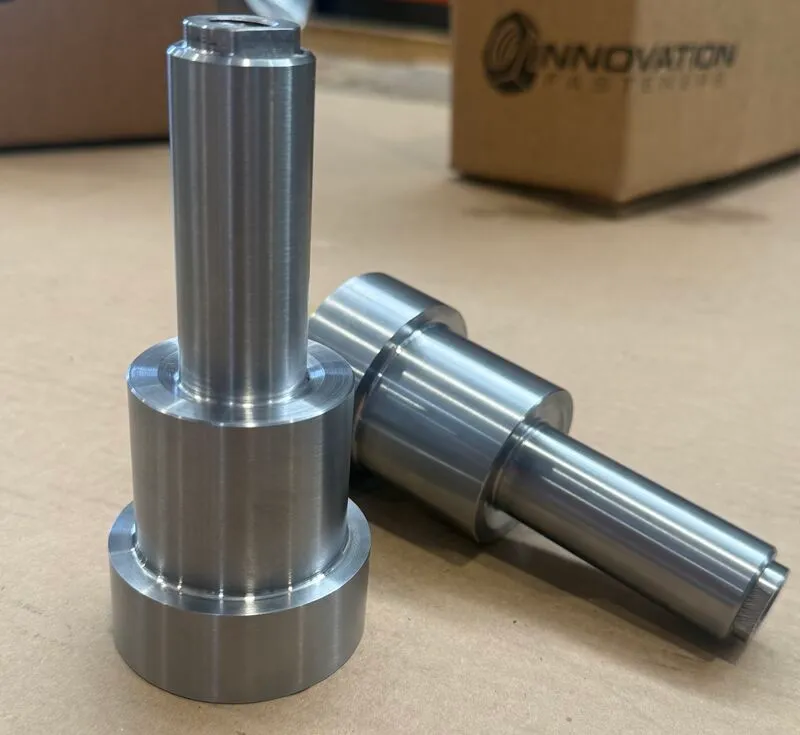

2.5" x 5.633" Support Pin
ASTM A29 / A108 Grade 1018. Machined to the customer's drawing in our Houston shop.
Job details
PartSupport Pin
Length5.633"
MaterialASTM A29 / A108 Grade 1018
Product familyMachined Components
Made inHouston, Texas · ISO 9001 certified
2.5" x 5.633" (+/- 0.012) Support Pin Material: ASTM A29 / A108 Grade 1018 Precision-machined for consistency, strength, and a reliable fit in demanding applications.
Machined components are built to print from certified bar: turned, milled, drilled and tapped, then inspected against the drawing before shipment. Pins, sleeves, plugs, fittings and adapters are typical of this work.
