Off the floor · Machined Components · posted 1yr ago

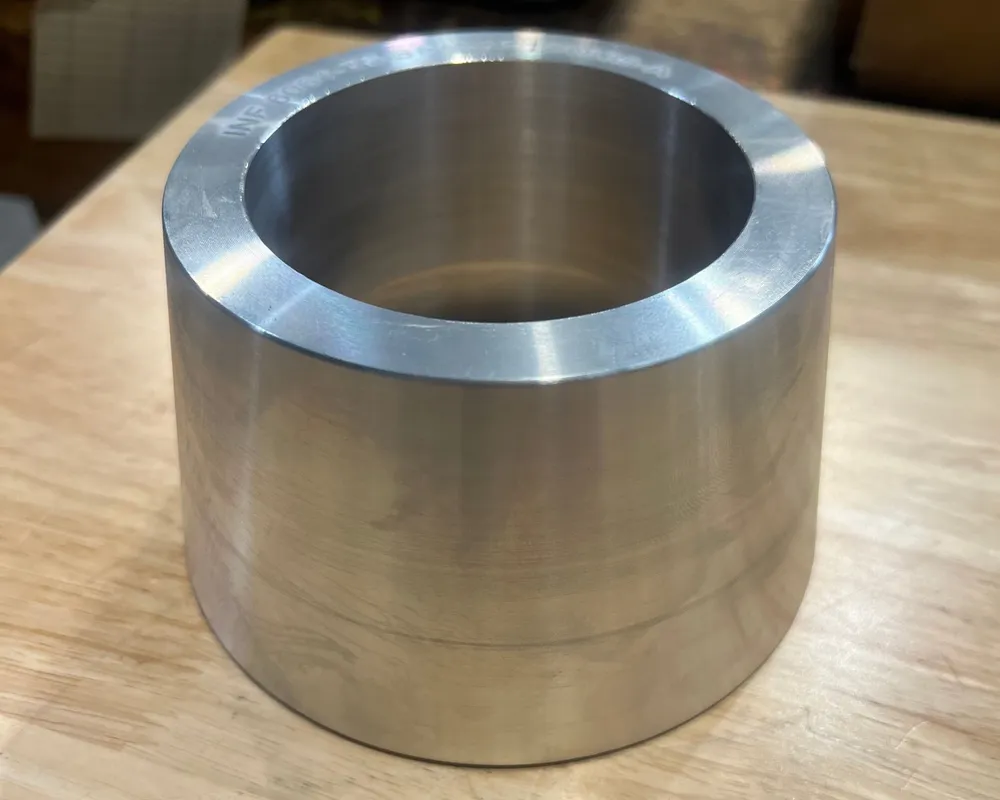

5-1/4" x 3" Installation Tool
Aluminum 6061-T6. Machined to the customer's drawing in our Houston shop.
Job details
PartInstallation Tool
Length3"
MaterialAluminum 6061-T6
Product familyMachined Components
Made inHouston, Texas · ISO 9001 certified
5-1/4" × 3" installation tool machined to the customer's drawing from 6061-T6 aluminum for a light, corrosion-resistant service tool.
Machined components are built to print from certified bar: turned, milled, drilled and tapped, then inspected against the drawing before shipment. Pins, sleeves, plugs, fittings and adapters are typical of this work.
