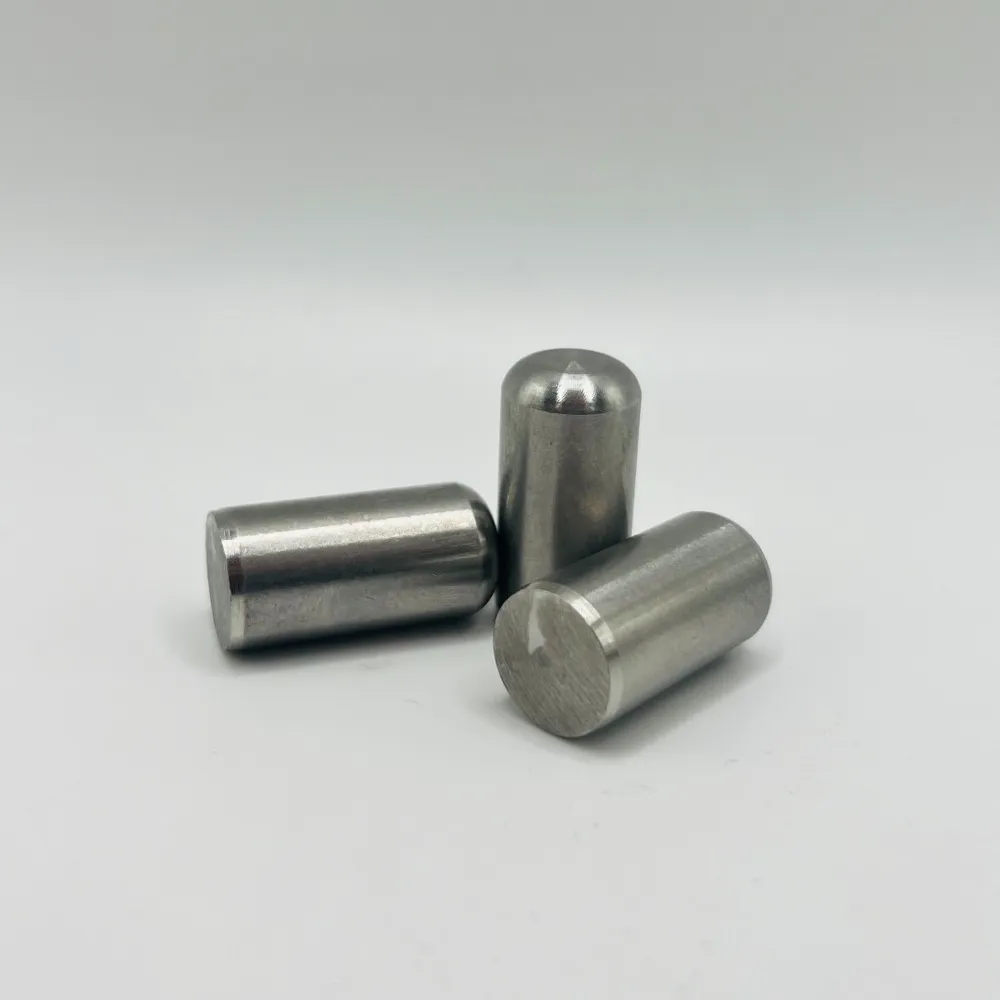

5/16" x 5/8" Dowel Pin
XM-19 (Nitronic 50). Machined to the customer's drawing in our Houston shop.
Job details
PartDowel Pin
Length5/8"
MaterialXM-19 (Nitronic 50)
Grade pageA193 B8R
Product familyMachined Components
Made inHouston, Texas · ISO 9001 certified
5/16" (.3128/.3126) × 5/8" dowel pin in XM-19 (Nitronic 50) stainless for corrosion resistance and high strength.
Machined components are built to print from certified bar: turned, milled, drilled and tapped, then inspected against the drawing before shipment. Pins, sleeves, plugs, fittings and adapters are typical of this work.
About the material: Nitronic 50 bolting — twice the yield strength of 316 with better seawater corrosion resistance and no loss of ductility, non-magnetic even after cold work. Read the A193 B8R data page →
