Off the floor · Bolts & Screws · posted 5yr ago
5/8"-11 UNC x 2-3/4" Hexagon Cap Screw
316 Stainless (ASTM A276). Machined to the customer's drawing in our Houston shop.
Job details
PartHexagon Cap Screw
Thread5/8"-11 UNC
Length2-3/4"
Material316 Stainless (ASTM A276)
Grade pageA193 B8M Class 1
Product familyBolts & Screws
Made inHouston, Texas · ISO 9001 certified

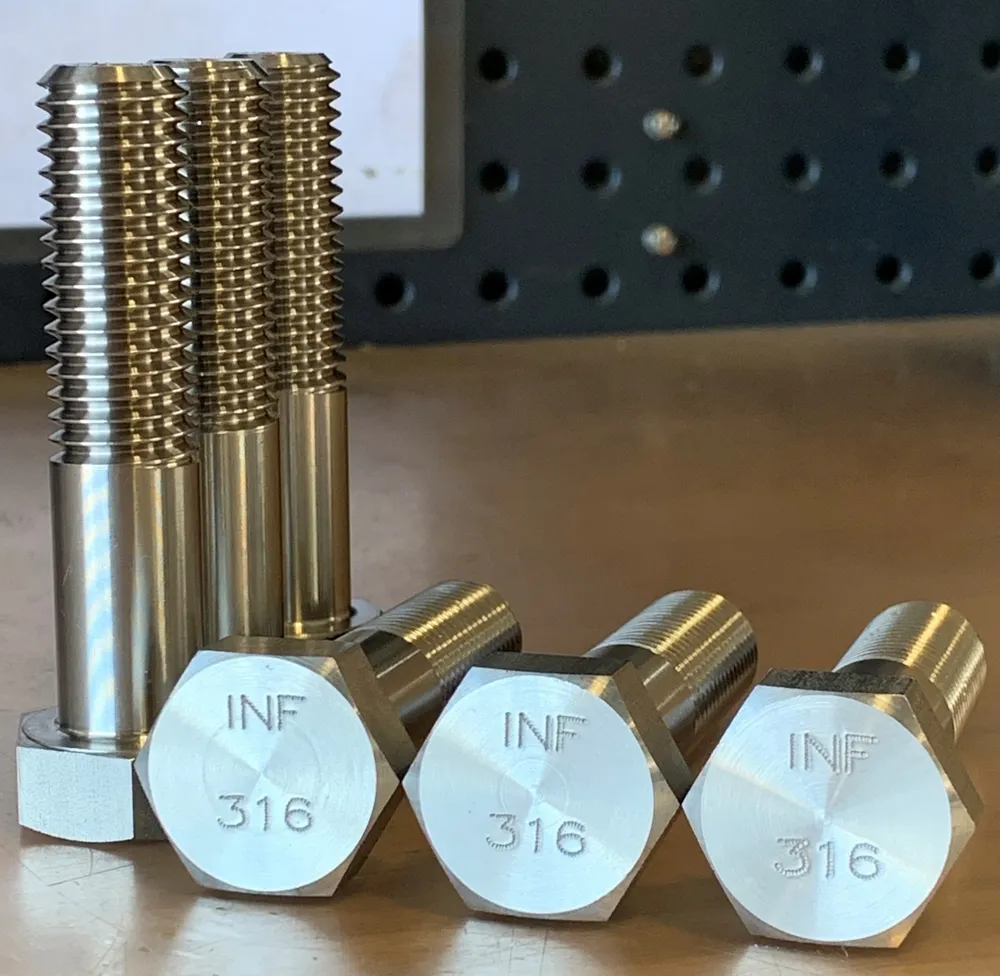

5/8"-11 UNC × 2-3/4" hexagon cap screw in ASTM A276 316 stainless, photographed before packing for shipment.
Headed fasteners are turned or forged to the pattern on the drawing, threads rolled or cut to class, and supplied with the finish specified. Heavy hex, 12-point flange, eye and special-head styles are routine work here.
About the material: 316 stainless bolting with molybdenum for chloride and pitting resistance — offshore, marine, chemical and coastal plant fasteners. Read the A193 B8M Class 1 data page →
