Off the floor · Bolts & Screws · posted 10mo ago

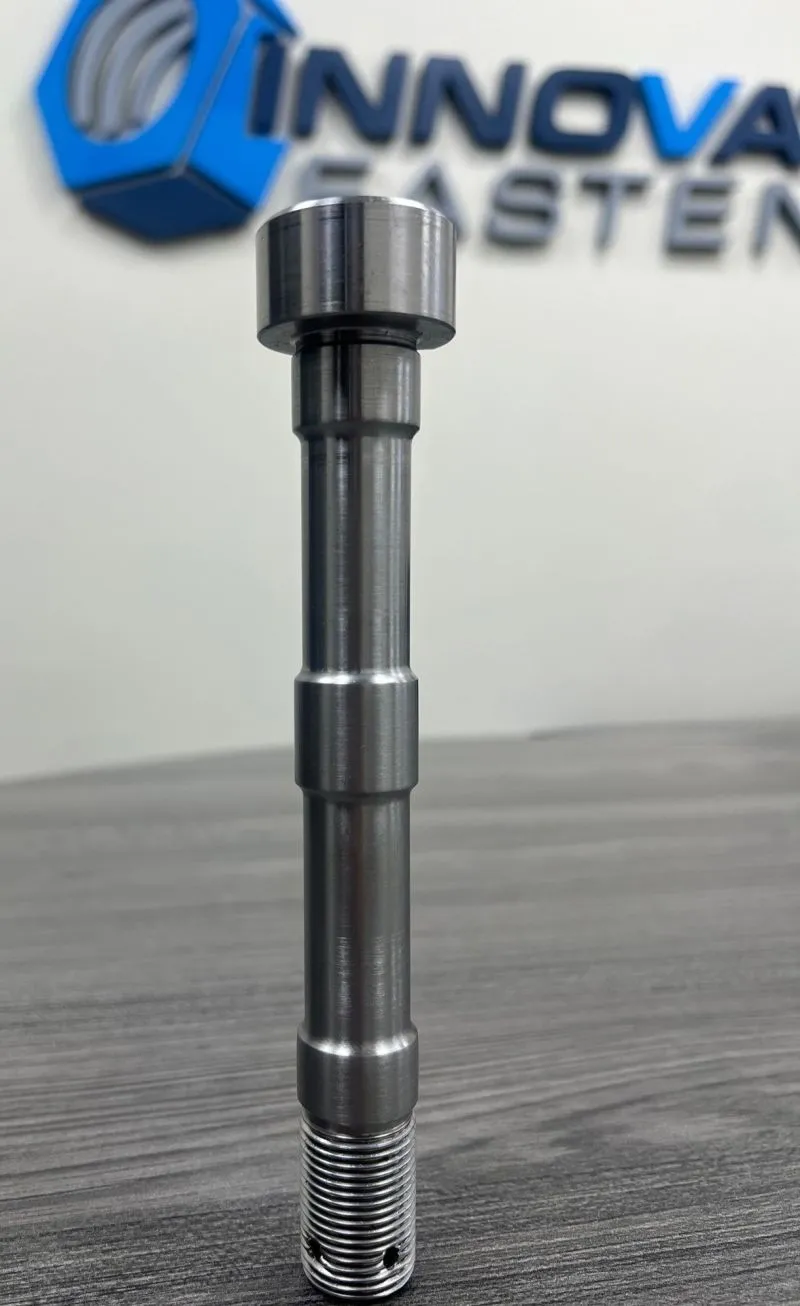

7/8"-14 UNF x 7.62" Connecting Rod Bolt
ASTM A193 B7. Machined to the customer's drawing in our Houston shop.
Job details
PartConnecting Rod Bolt
Thread7/8"-14 UNF
Length7.62"
MaterialASTM A193 B7
Grade pageA193 B7
Product familyBolts & Screws
Made inHouston, Texas · ISO 9001 certified
7/8–14 UNC x 7.62" (+/–.010) OAL Connecting Rod Bolt ASTM A193 B7 with rolled threads per print B expertly manufactured to meet exact customer specifications, ensuring strength, reliability, and precision in every turn.
Headed fasteners are turned or forged to the pattern on the drawing, threads rolled or cut to class, and supplied with the finish specified. Heavy hex, 12-point flange, eye and special-head styles are routine work here.
About the material: The workhorse alloy-steel bolting grade for flanges, valves and pressure equipment — 125 ksi tensile, quenched and tempered 4140. Read the A193 B7 data page →
